Why use pagination?

When you read a book you don’t want to have all the text in only one page, we split the content into many pages to easily browse and read information.

For an API it’s similar, we prefer to send data page by page for performance issues because reading all the database at every call is heavy instruction, and if the user just needs top 5, we don’t want to send useless data.

Why do pagination with cursor?

For pagination, the most common option is with offset and limit, but if you need performance or consistency, check out what the cursor based pagination can do below. However, if you need direct navigation to a certain page cursor based pagination is more heavy compare to offset, the main strength is page per page!

Performance

Database is better to do filter instead of skip, the difference is small at start but if you have a huge dataset the impact can be huge.

In my own machine with PostgreSQL database, I do a script available in GitHub Gist to benchmark timing between pagination by offset vs cursor.

Page	Offset (ms)	Cursor (ms)
1	0.406	0.386
10	0.744	0.360
100	4.047	0.366
500	18.635	0.359
1000	36.580	0.364

With Cursor-based pagination time is constant (O(1)) per page. With Offset-based pagination time increases linearly (O(n)), get the latest page is much longer compare to first.

Consistency

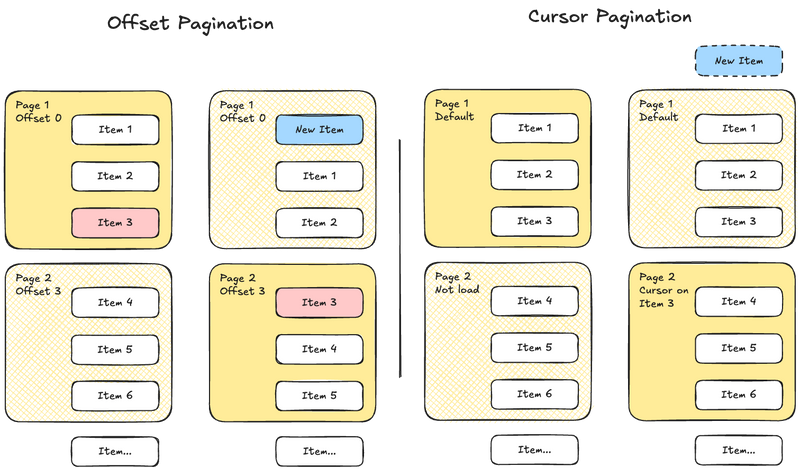

If your data can change in real time, when you want your latest

Required

An indexed column like a sortable id or datetime but need to be unique to avoid duplicate values

About Sortable ID you have auto increment number or time-based format

• ULID¹
• UUID v6 or v7
• ObjectId (MongoDb)²

Wait, UUID isn’t fully random??

No, since UUID v6, 48 bits are allocated for Unix timestamp in milliseconds. If you want to read more information about UUID evolution, you can visit this site to know the structure of different UUID versions

Implementation

This is an exemple with an id encoded in base64

• Call for the first page (without any cursor)
  • Request your data with a limit
  • Get the last ID of your request
  • Encode it to base64
  • Send it with data of your first page

  GET https://www.theanaverwaerde.dev/api/data

  {
    "data": [{},{}],
    "next_cursor": "OTk5"
  }


• Next calls when cursor is specified
  • Decode your base64 cursor as your last_id
  • Request your data with a filter WHERE id > last_id and a limit
  • Get the last ID of your request
  • Send it with data of your page

  GET https://www.theanaverwaerde.dev/api/data?cursor=OTk5

  {
    "data": [{},{}],
    "next_cursor": null
  }


Reminder: Use Parameterized Queries in SQL for the last_id to avoid injection-based attacks!

---

1. Universally Unique Lexicographically Sortable Identifier knows as ULID has 128 bits length including 48 bits of Unix timestamp in milliseconds. Format looks like 01ARZ3NDEKTSV4RRFFQ69G5FAV. You can find full spec on github. ↩

2. The default ID in MongoDb is called ObjectId composed of 96 bits length including 32 bits of Unix timestamp in seconds. Format looks like 507f1f77bcf86cd799439011. Full information in MongoDB documentation ↩
